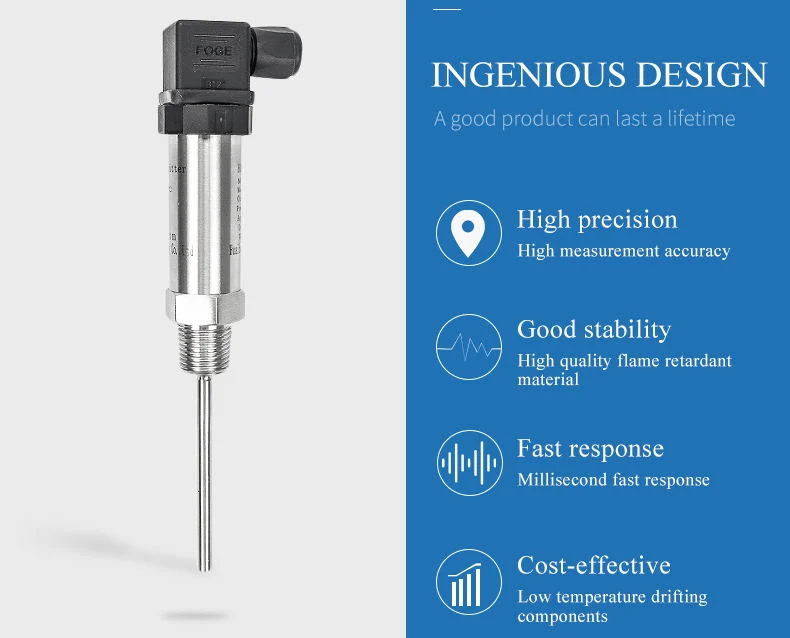

                4-20mA Pt100 Liquid Temperature Transmitter Water Temperature Sensor Digital display

    The HDT-500 integrated temperature transmitter measures the temperature of the measured medium by taking advantage of the resistance of the platinum resistor as a function of temperature. The product has three parts: temperature sensor, compensation circuit, and conversion circuit. It has the advantages of stable performance, high sensitivity, and high reliability.
   The HDT-500 integrated temperature transmitter adopts an all-welded active thread structure and is easy to install. It is widely used in petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, natural gas, and other automated temperature measurement and control systems.

Measuring range-200-600Deg.C
Power supply24V
Output signal4-20mA
Accuracy level0.5%F.S
Sensitive originalsPT100
Insulation strength100MΩ
Long-term stability≤0.2%F.S/year
Thermal response time ≤The 30s
Insert diameterφ8 (Special requirements can be negotiated)
Explosion-proof gradeExplosion-proof ExiaIICT6
Enclosure protectionIP65

Detailed Images
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
Selection Table
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
Wiring Diagram
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
Factory Show
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display
4-20mA PT100 Liquid Temperature Transmitter Water Temperature Sensor Digital Display

Our Service
1. We guarantee you the lower pricing from us compared with your competitive prices from others in the volume.
2. We can guarantee you any quality issue from us will refund you immediately or replace it with new & qualified products.
3.OEM, Accept lower quantity trial order
4.Fast delivery. 24 hours With Discount Courier, Air shipment
5. It contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency, and other transmitters.
All products are in stock (except for special customization).
6. We can support your 24Hours online service via Alibaba, email, skype, WhatsApp, Facebook, etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!
