Specifications of J type Thermocouple
|Screw type thermocouple
|Length of compensation wire
|0.5 -5 meter
|Material of probe
|K/J/ (E type could be customized)
|Material of wire
|Precision shielded wire
|0-600 deg C/ 0-400 deg C
|M6 or M8
Install by screw
A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes. It consists of two dissimilar metal wires, joined at one end. When properly configured, thermocouples can provide measurements over a wide range of temperatures.
Description of J Type Thermocouple
Known for their versatility as temperature sensors, thermocouples are manufactured in a variety of styles, such as thermocouple probes,thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.
Features of K type M6 Screw Thermocouple M8 Screw Type Thermocouple
- Customized diameter, sheath lengths and lead length
- Stainless steel braided or hose protection
- K, J, T and E calibrations
- Grounded, ungrounded and exposed junctions
- Flat and drill point
- Epoxy sealed cold ends
- Flexible extensions
- Miner coated and stainless steel sheaths
- Straight, 45° bend or 90° bend
- 12 mm and 15 mm locking bayonet caps
Performance Capabilities of thermocouple
Thermocouples are suitable for measuring over a large temperature range, from −270 up to 3000 °C (for a short time, in inert atmosphere).Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, other industrial processes and fog machines. They are less suitable for applications where smaller temperature differences need to be measured with high accuracy, for example the range 0-100 °C with 0.1 °C accuracy. For such applications thermistors, silicon bandgap temperature sensors and resistance thermometers are more suitable.
Applications of J type Thermocouple
• Food processing equipment
• Plating baths
• Industrial processing
• Medical equipment
• Pipe tracing control
• Industrial heat treating
• Packaging equipment
• Liquid temperature measurement
• Refrigerator temperature control
• Oven temperature control

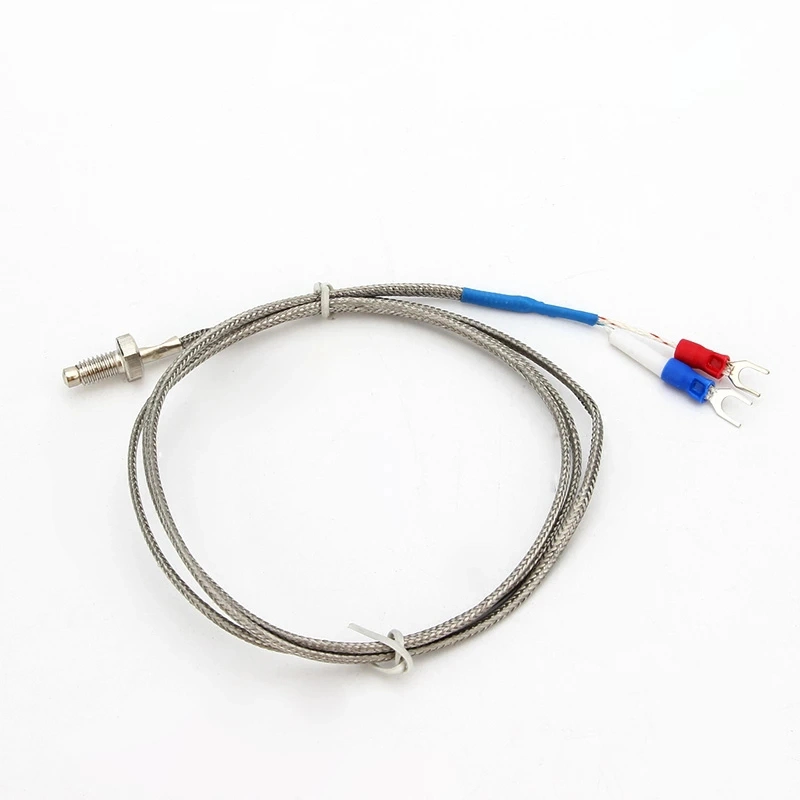

Reference pictures of J type Thermocouple
How to Order
Order Guidance of K type M6 Screw Thermocouple M8 Screw Type Thermocouple
Diameter and length of probe
Type, K type, J type, E type, T type etc.
Length of wire, and type of wire
Thread modle number if have
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
